Automatic Single-shaft Rewinding Inspection Machine

Jiangyin Baihe Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic single-shaft rewinding inspection machine in China. Welcome to buy CE certified machines made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

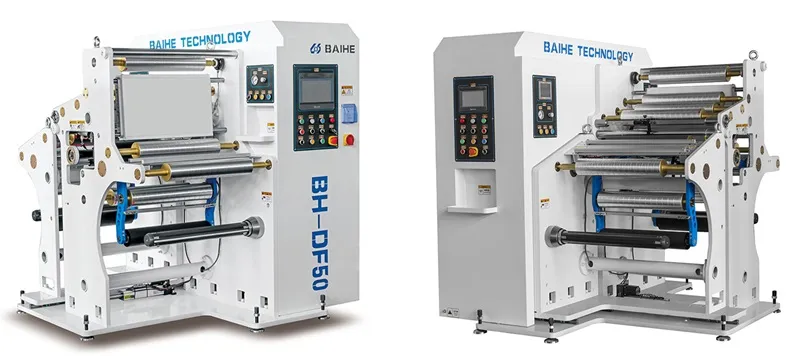

BH-DF50 Series automatic single-shaft rewinding inspection machine is suitable for rewinding and inspection of BOPP/ CPP/ PET/ PE/ lamination film/ metalized film and other rolling material, mechanical speed 300m/min, two-way operation, winding and unwinding diameter are 600mm.







Parameter Item	Parameter Index
Material Thickness Range	0.012--0.2mm
Equipment Valid Width	50-500mm
Roller Surface Length	550mm
Unwinding Diameter	600mm(Max)
Rewinding Diameter	600mm(Max)
Mechanical Speed	400m/min(Max)
Tension Range	30-200N
Tension Control Method	Un. constant tension/Re. taper tension
Web Guiding Methods	Tracking edge/ printed line
Guiding Accuracy	±0.3mm
Guiding Movement Range	±50mm
Coiling Method	Center winding
Un. Direction	Upper/bottom feeding
Re. Direction	Upper/bottom winding
Running Direction	Bi-directional running (forward and backward)
Feeding/Discharging Roll Method	Side arm type
Rewinding Accuracy	±0.3mm
Unwinding Core ID	3inch (76mm), paper core
Rewinding Core ID	3inch (76mm), paper core
Meter Accuracy	±1/1000m
Unwinding Power	1.5Kw×1 set
Rewinding Power	1.5Kw×1 set
Unwinding Power	1.5Kw×1 set
Total Power	≈6Kw
Supply Power	AC 380±5%, 50Hz
Air Pressure	≥0.6Mpa
Machine Color	Milky white
Cabinet Color	Milky white
Operate Panel Color	Black
Safety Protection Color	Yellow
Equipment Dimension	1750(L)*1750(W)*1800(W)mm
Machine Weight	About 1800Kg





1. Unwinding



• Unwinding method: active unwinding, Asynchronous servomotor control tension, side arm type air shaft support material, automatic fill-in air, equipped with 3 inches air shaft.

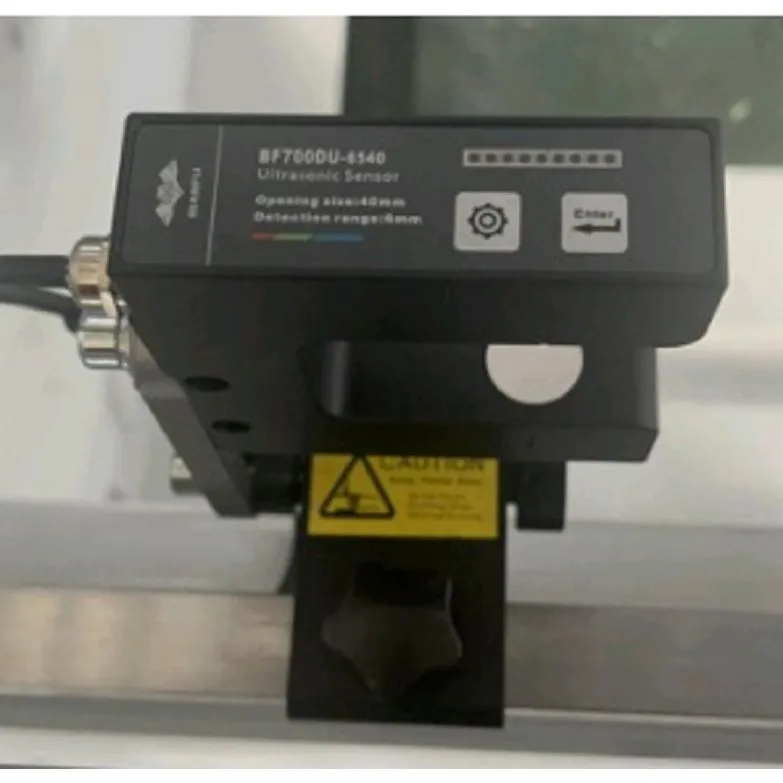

• Web guide system: It adopted high quality analog quantity web guide system to track printing line or material's edge.



• Unwinding tension detection: Load cell detects tension, PLC automatic calculate and control.
• Unwinding splicing table: pneumatic press type splicing table, easy connect roll.
• Unwinding lay-on roller: assisted contact type lay-on roller, control by precision regulator valve, the touching pressure value could be adjustable.
• Diameter calculate: It collect by built-on encoder directly, with balance alarming function, it could be adjustable.

2. Traction



• Traction drive: Asynchronous servomotor as independent driving, And the others adopt arc-gear synchronous belt wheel transmisson.
• Traction roller: Rubber traction roller is steel roller via mirror polishing treatment, with dynamic balance treatment, stable running, no vibration source.





• Traction lay-on roller: Traction lay-on roller is rubber roller with dynamic & static balancing correction. It adopts pneumatic control with adjustable pressure for rising and falling the traction lay-on roller.
• Measure length: built-in encoder detects material length, with high accuracy and high resolution, automatic measuring, stop for the actual production demand in matter.



3. Rewind



• Rewinding method: side arm type air shaft support material, automatic fill-in air, equipped with 3 inches air shaft.



• Rewinding drive: Asynchronous servomotor as independent driving, And the others adopt arc-gear synchronous belt wheel transmission.
• Rewinding lay-on roller: assisted contact type lay-on roller, control by precision regulator valve, the touching pressure value could be adjustable.
• Diameter calculate: It collect by built-on encoder directly, with balance alarming function, it could be adjustable.
• Rewinding splicing table:it has pneumatic press type splicing table, easy connect roll.
• Rewinding observation light box:



4. Electrical and Pneumatic Part



• Drive: High performance Asynchronous servomotor with YASKAWA inverter is adopted to achieve high precision speed, stable operation and easy installation.
• Control: The host is centralized control by Panasonic PLC, set operating parameters on interface and monitor working status.

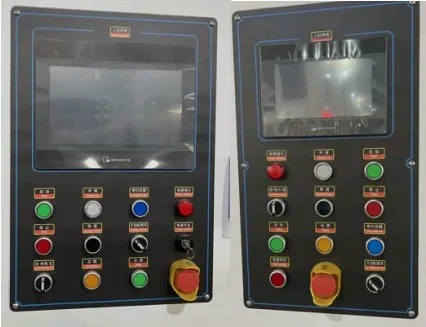

• Interface: It is easy to reading and using for operators, saving setting time and improving efficiency.
• Circuit layout: All circuits are enclosed laid to minimize human operate error.
• Pneumatic components: The selection and designing of pneumatic components is well considered, all electrical and pneumatic components are domestic and overseas famous brands due to the machine function have many automation and control.





5. Others



• The machine wall panel with high strength and low stress. It is stable after twice stress relieving
• NSK bearings are adopted in all spinning parts
• All machine units are processed in CNC machine center.
• All rotated parts are built-in design or with protection cover.
• It has installed emergency button at operation side.
