Mini Rewinder Inspection Machine for Soft Packaging
BH-DF50 Series mini rewinder inspection machine for soft packaging is an innovative and high-quality machine that is designed to inspect and rewind soft packaging materials, such as BOPP/ CPP/ PET/ PE/ lamination film/ metalized film and other rolling material, ensuring that the end result is of the highest quality.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Jiangyin Baihe Machinery Co., Ltd. is one of the leading manufacturers and suppliers of mini rewinder inspection machine for soft packaging in China. Welcome to buy CE certified machines made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Description

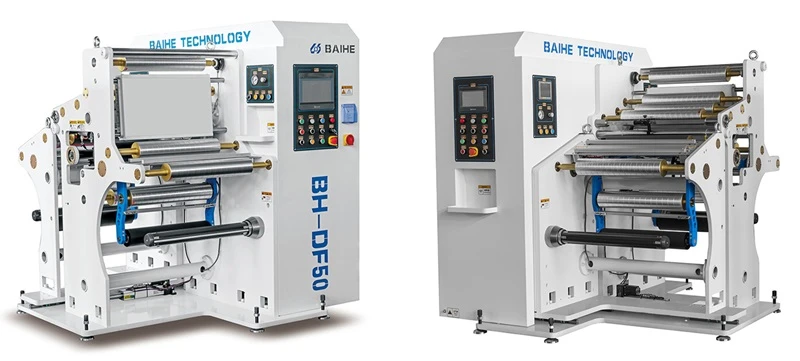

BH-DF50 Series mini rewinder inspection machine for soft packaging is an innovative and high-quality machine that is designed to inspect and rewind soft packaging materials, such as BOPP/ CPP/ PET/ PE/ lamination film/ metalized film and other rolling material, ensuring that the end result is of the highest quality.
Key highlights of this machine with compact size and easy-to-use design. It is small enough to fit in any workspace, making it a great option for small and medium-sized businesses. The intuitive interface makes it easy for operators to quickly learn how to use the machine and start producing high-quality results.
The machine uses advanced technology to ensure that the materials are properly inspected and rewound. This means that any defects or inconsistencies in the packaging materials are identified and addressed, resulting in a final product that is of the highest quality.
Technical specifications
|
Standard Width |
500mm |
|
Roller Surface Length |
550mm |
|
Unwinding Max. Diameter |
φ600mm |
|
Unwinding Paper Core Inner Diameter |
3 inches (6 inches optional) |
|
Rewinding Max. Diameter |
φ600mm |
|
Rewinding Paper Core |
3 inches (6 inches optional) |
|
Machine Speed |
400m/min |
|
Min. Rewinding Width |
50mm |
|
Traction Motor |
1.5KW |
|
Rewinding Motor |
1.5KW |
|
Unwinding Motor |
1.5KW |
|
Power Supply Voltage |
AC380 50HZ |
|
Dimensions |
1750(L)X1750(W)X1800(H)mm |
|
Machine Weight |
About 1800Kg |
Main Features
- Unwinding and rewinding method: active unwinding and rewinding, Asynchronous servomotor control tension, side arm type air shaft support material, automatic fill-in air, equipped with 3inches air shaft.
- Built-in encoder detects material length, with high accuracy and high resolution, automatic measuring, stop for the actual production demand in matter.
- With Rewinding observation light box
- High performance Asynchronous servomotor with YASKAWA inverter is adopted to achieve high precision speed, stable operation and easy installation.
- The host is centralized control by Panasonic PLC, set operating parameters on interface and monitor working status.
- It is easy to reading and using for operators, saving setting time and improving efficiency.
